Elemental Joinery Hardware.

Elemental joinery hardware range embraces sleek, minimalist design, crafted from extruded aluminium with an anodised Silver or Black finish. Architect-designed for simplicity, it eliminates unnecessary details for a clean, modern aesthetic.

With more than 20 years of experience, Windowmakers provides tailored aluminium joinery hardware solutions that perfectly complement your aluminium windows and doors. Our team collaborates with you to ensure the hardware you choose enhances both the design and performance of your project.

Get in Touch

Elemental Hardware Features.

• Elemental joinery hardware is made from extruded aluminium with an anodised finish.
• Available in a sliver or black anodised finish in 25-micron thickness.
• Designed for use with aluminium windows and doors.
• Characterised by its minimalistic design and straight-edged shapes.
• Fully concealed fixing screws.
• Precision machined with high accuracy.
• All APL hardware comes as a complete package, including locking mechanisms.
• A wide range of standard aluminium joinery hardware options are available.

Elemental Hardware Options.

Elemental joinery hardware delivers sleek, minimalist fittings for modern spaces.

Lever Door Handle

Featuring a modern, minimalistic design, this handle offers secure four-point locking with options for snib or key operation.

Available Sizes:
Small: Handle length - 125mm, Baseplate - 221mm
Large: Handle length - 140mm, Baseplate - 292mm

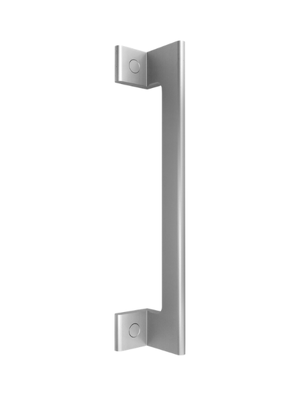

Pull Door Handle

This sliding door handle is available in two standard sizes—large or small—but can be custom-made to any length by special order. The handle is separate from the lock, which can be operated by either a key or snib for secure use.

Available Sizes:
Small: 250mm high
Large: 325 mm high

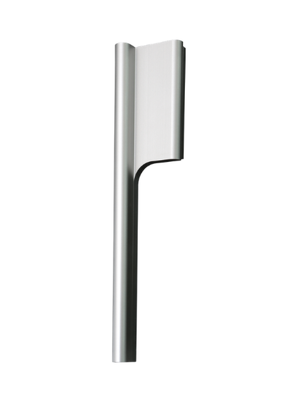

Bifold Handle

This sleek swivel lock activates locking rods at the top and bottom of the door or window panel, ensuring secure closure and enhanced protection.

Available Sizes:
160mm high x 34 mm wide

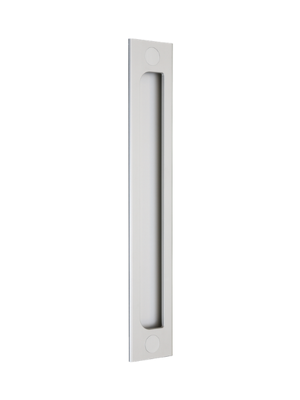

Flush Pull

This pull is ideal for lighter sliding panels, featuring a sleek design with a separate mounting from the pull. It can be operated by either a key or snib for secure and convenient locking.

Available Sizes:
269mm high x 44 mm wide

Window Fastener

This aluminium window handle closes seamlessly against the frame with no visible flap or wedge. It is also available in a low-profile option for a sleek, modern look.

Available Sizes:
110 mm high x 35 mm deep

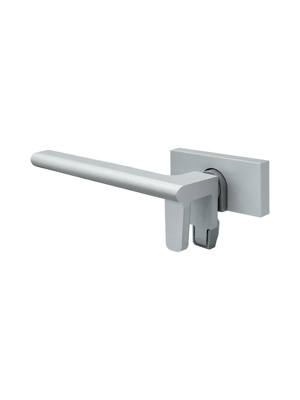

Venting Window Fastener

This aluminium window handle offers a venting option, allowing the window to be securely fastened in a partially open position for passive ventilation.

Available Sizes:
110mm wide x 35 mm deep

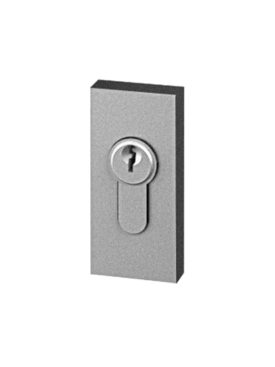

Escutcheon

This separate lock is designed for use with the Elemental pull handle, available in both turn snib and key options for added security.

Colour & Finishes.

Elemental aluminium joinery hardware features a durable anodised finish, designed to complement your windows and doors. Available in silver or black with a 25-micron thickness, explore our anodised colour range for more details on the finish.

Care & Maintenance.

To maintain optimal functionality and extend the lifespan of your Icon window and door hardware, regular cleaning is required. Click below for detailed maintenance instructions to preserve the performance and condition of your joinery hardware.
