Urbo Joinery Hardware.

Urbo hardware is one of our most popular choices for modern residential homes, featuring fine lines, clean shapes, and a blend of square and radiused edges for a refined look that doesn’t compromise on strength.

At Windowmakers, we leverage our 20 years of expertise to offer joinery hardware solutions tailored to your aluminium windows and doors. Our team collaborates with you to provide hardware that integrates with your home’s design and meets its functional requirements.

Get in Touch

Urbo Hardware Features.

• A powder-coated joinery hardware option fora windows and doors.
• Designed for use with aluminium windows and doors.
• The fine lines of Urbo hardware provide a lighter appearance compared to Miro or Icon, without compromising on strength or performance.
• All APL hardware comes as a complete package, including locking mechanisms.
• A wide range of standard window and door hardware options is available.

Urbo Hardware Products.

Our Urbo hardware range offers a comprehensive selection of high-performance components, designed to deliver consistent style and functionality across every window and door in the home.

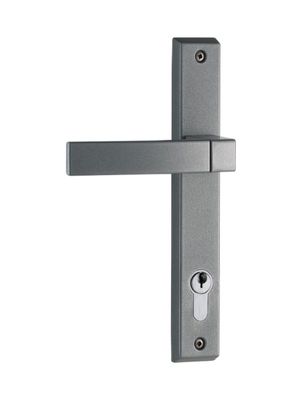

Lever Door Handle

Offers multi-point locking, activating locking rods at the top and bottom of the door when the handle is lifted for added security.

Available Sizes:
Small: Handle length - 120mm, Baseplate - 212mm
Large: Handle length - 150mm, Baseplate - 292mm

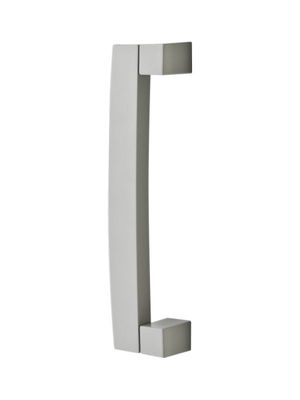

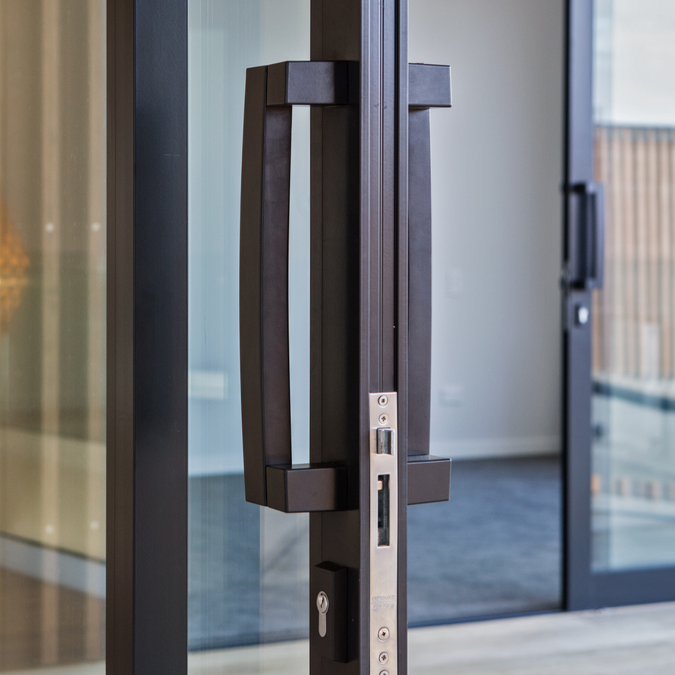

Pull Door Handle

Features a comfortable grip with smoothly radiused inner edges and a lock fixed separately to the door, activated by a key or interior turn knob. A four-point locking system is available. Handle is compatible with Apex or Windsor turn sets.

Available Sizes:
Small: 255mm high
Large: 323mm high

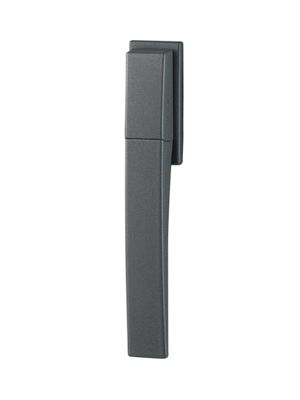

Bifold Handle

Features a swivel lock that activates locking rods at the top and bottom of the bifold door or window panel, ensuring secure closure.

Available Sizes:
153mm high x 24 mm wide

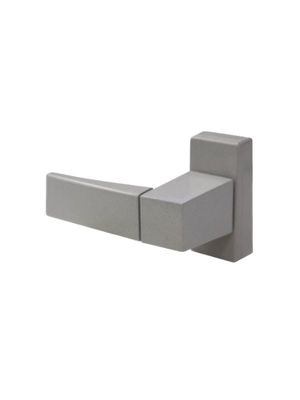

Half Lever Door Handle

Locks sliding door panels together, typically in 4-panel configurations. Can be used with a pull handle on heavier doors. A self-latching option is also available.

Available Sizes:
72mm long x 50 mm deep

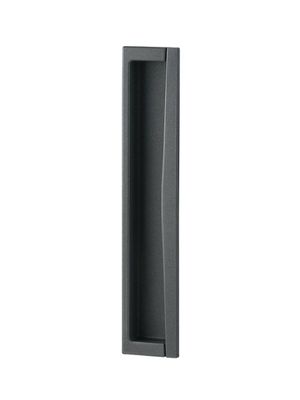

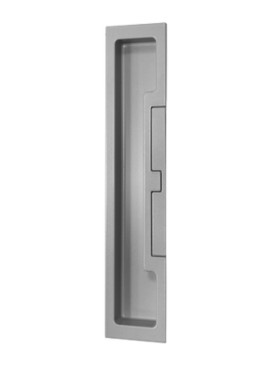

Flush Pull Handle

Ideal for lighter sliding panels, providing a sleek and discreet solution where a robust hand grip is not necessary.

Available Sizes:
220mm high x 44 mm wide

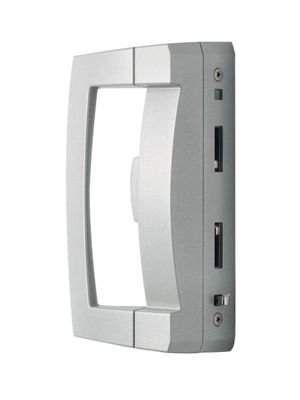

Surface Mount Sliding Door Handle

An all-in-one handle and lock solution for sliding doors or windows, with a snib or keyway installed directly in the body of the handle.

Available Sizes:
180mm high x 54 mm deep

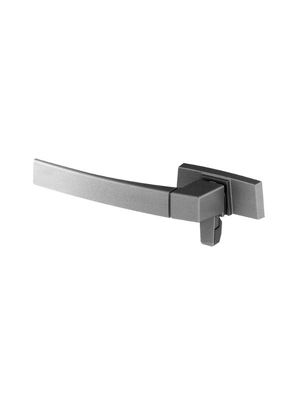

Window Fastener

Closes securely against the window frame without a visible flap or wedge, offering a sleek, clean look. A low-profile option is also available.

Available Sizes:
110mm wide x 33 mm deep

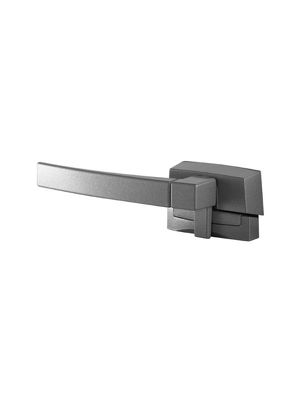

Architectural Window Fastener

Features a top-mounted fastener with a separately fixed wedge, designed specifically for the APL Architectural Series.

Available Sizes:
110mm wide x 40 mm deep

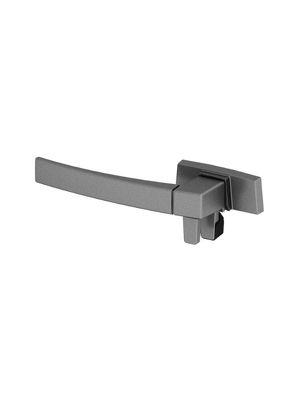

Venting Window Fastener

Offers a venting option that allows the window to be securely fastened in a partially open position for passive ventilation.

Available Sizes:
110mm wide x 33 mm deep

Colour & Finishes.

Urbo joinery hardware comes in a durable powdercoat finish, designed to match your powder-coated windows and doors. Explore our wide selection of colours to enhance the aesthetics of your build.

Care & Maintenance.

To ensure the longevity and performance of your Urbo hardware, regular cleaning is essential. Click below for care guidelines to keep your hardware in top condition.
